Mechanical Diaphragm Dosing Pump
(Proportional Microprocessor Controller)
Mechanical Diaphragm Dosing Pump
(Proportional Microprocessor Controller)
Mechanical piston and diaphragm dosing pumps with integrated proportional
microprocessor controller with internet connectivity bringing operators and engineers closer than ever to
their systems providing invaluable live and historical data in real-time from any location worldwide, bringing full
control to application managers the ability to remotely monitor and adjust key parameters such as chemical concentration
levels and flow rate during live working conditions via PC, laptop, tablet or smartphone optimising chemical efficiency.
Webserver Interface Data On Demand
Information available to the operator locally or remotely through the web interface
portal
| Real-Time Data | Parameter Settings | Pump Statistics | Alarms Status | Webserver Pages | Cloud Storage Platform
|
Smart Intelligent Graphic Display
Intuitive Interface Changes Colour According To Operating Function

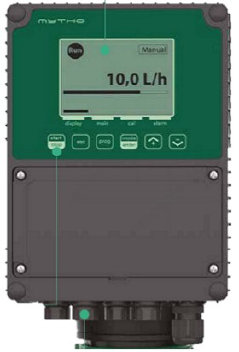

Microprocessor Controller
Display Main Calbr
Alarm
Display Main Calbr
Alarm
Display Main Calbr
Alarm
AMBER DISPLAY
Controller Communicating
Smart Device
Controller Communicating
Smart Device
RED DISPLAY
Alarms Status Activated
Check System
Alarms Status Activated
Check System
GREEN DISPLAY
Successful Parameter
Schedule Updated
Successful Parameter
Schedule Updated

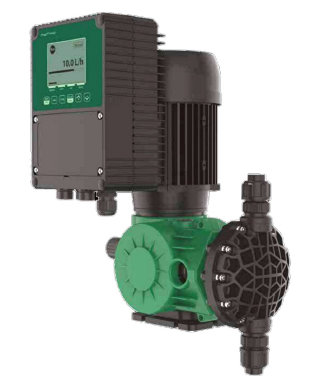

Motor-Driven Digital
Metering Pumps
Smart microprocessor based mechanical diaphragm and piston metering pumps with
integrated digital multifunction controller that transforms the pump from a simple tool into a complete smart dosing system capable
of autonomous logic with remote oversight communication via any smart device or computer, this groundbreaking
innovation allows these mechanical metering pumps to be seamlessly integrated into applications with significantly higher
chemical demands eliminating the need for external variable frequency drive devices.
V Model Pumps
Key Features
• Pumps designed to operate continuously over long periods with
repeatable precision reliability and performance
• Diaphragm direct spring-return mechanism optimises and
maintains accuracy in high pressure environments
• Variable eccentric system exploits motors power during suction-discharge
phases for a smooth linear output
• Multiple chemical resistant dosing heads and seals suitable for
high-viscosity chemical process applications
Digital Process Controller
• Microprocessor controller
allows users to link signals from the field to monitor control dosage parameters
• Multiple operating modes
- Manual - Timed - Batch - Proportional (pulse) - PPM - Proportional (mA)
• Statistics - Stroke Total - Chemical Dosed - Starts - Resetable
Counter Function
• Remote access through websever IoT connection with full programming
authority
Key Features
• Pumps designed to operate continuously over long periods with
repeatable precision reliability and performance
• Diaphragm direct spring-return mechanism optimises and
maintains accuracy in high pressure environments
• Variable eccentric system exploits motors power during suction-discharge
phases for a smooth linear output
• Multiple chemical resistant dosing heads and seals suitable for
high-viscosity chemical process applications
Digital Process Controller
• Microprocessor controller
allows users to link signals from the field to monitor control dosage parameters
• Multiple operating modes
- Manual - Timed - Batch - Proportional (pulse) - PPM - Proportional (mA)
• Statistics - Stroke Total - Chemical Dosed - Starts - Resetable
Counter Function
• Remote access through websever IoT connection with full programming
authority
Electronic Dosing Systems
Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes

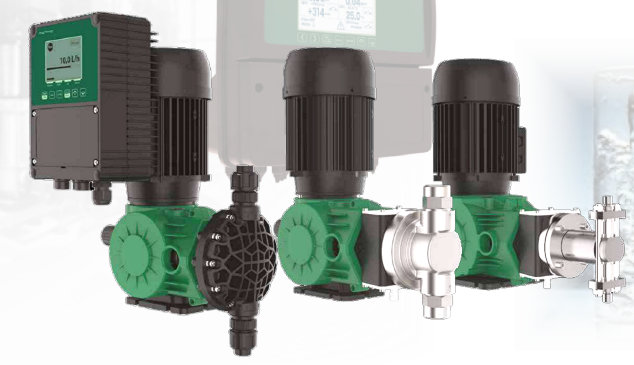

Mechanical Diaphragm Pumps
Multiple models of diaphragm pumps with integrated digital controller available
with outputs to 500 l/hr and 16 bar pressure supplied with powerful IP55 rated three phase motors to provide
sufficient power when used high pressure applications with manual adjustment for increased control and accuracy.
Mechanical Piston
Pumps
Numerous models of piston/plunger pumps available with integrated microprocessor controller
with outputs to 1000 l/hr and pressures to 20 bar with powerful IP55 rated three phase motors to provide
sufficient power when used high pressure applications with manual adjustment for increased control and accuracy.
Remote Management
Connection to WI-FI interface webserver - Modbus RTU RS485 Port for integration into complex systems including full programming authority.
Connection to WI-FI interface webserver - Modbus RTU RS485 Port for integration into complex systems including full programming authority.
Pumps With Modbus WiFi Technology
Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
Copyright: - Electronic Dosing Systems 2026
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle
Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing |
Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Flow Rates 9 ÷ 2300 l/Hr - Pressure 100 Bar
