Chemical Metering Pumps
Manual Adjustment
This high precision digital metering pump features a clear graphic display
that shows real-time feedback of stroke frequency or percentage flow rate programmed through the user-friendly
keypad coupled with the proprietary power algorithm designed to maintain a steady flow of chemical is delivered with each
stroke, unlike traditional solenoid-driven pumps the smart drive algorithm monitors the pressure intensity against
the diaphragm in real time adjusting the power to the solenoid to ensure the diaphragm completes it's full stroke movement.
Available
with Modbus RTU RS485 port interface for remote management access via internal webserver with full programming
authority via online server.
Chemical Dosing Pumps
Manually Adjustable
Extensive range of cost effective manually adjustable chemical dosing
pumps in IP65 surface mounted housing engineered for continuous operation coupled with ease of use functionality
to enable operators to fine tune chemical metering at the desired rate with repeatable precision maximising chemical efficiency even
in the most challenging of environments, equipped with sophisticated electronics and components the HS range
of dosing pumps deliver enhanced metering precision and chemical efficiency ideal for a wide spectrum
of commercial and industrial applications.
Dual Frequency Range
Equipped with two operating ranges this
innovative design offers unparalleled adaptability allows the user to transition between two distinct metering frequencies
high for rapid dosing or low-frequency for processes with less chemical needs or with variable operating conditions offering improved
chemical efficiency.
Dual Frequency Range
Equipped with two operating ranges this
innovative design offers unparalleled adaptability allows the user to transition between two distinct metering frequencies
high for rapid dosing or low-frequency for processes with less chemical needs or with variable operating conditions offering improved
chemical efficiency.
HK Model Pumps
Key Features
• Built to handle challenging environments using
superior components redefining durability and fluid management
• Integrated Weekly Timer - Bbatch
dosing activated by input signal - Timed (biocide dosing) with delay function
•
Programmable Timed Modes - Bbatch dosing activated by input signal - Timed (biocide dosing) with
delay function
• Constant Operation - Manually set desired flow rate in stroke frequency
or percentage of the pumps rated output
• User-friendly menu includes password
protection safeguards all program settings against unauthorised amendments
• Statistics
Details - Strokes made by pump - Chemical dosed in litres - Total pump starts - Reset statistics memory
•
Installation Kit : - PVDF Injection Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose
YL Model Pumps
Key Features
• Built to handle challenging environments using
superior components redefining durability and fluid management
• Integrated Weekly Timer - Bbatch
dosing activated by input signal - Timed (biocide dosing) with delay function
•
Programmable Timed Modes - Bbatch dosing activated by input signal - Timed (biocide dosing) with
delay function
• Constant Operation - Manually set desired flow rate in stroke frequency
or percentage of the pumps rated output
• User-friendly menu includes password
protection safeguards all program settings against unauthorised amendments
• Statistics
Details - Strokes made by pump - Chemical dosed in litres - Total pump starts - Reset statistics memory
•
Installation Kit : - PVDF Injection Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose

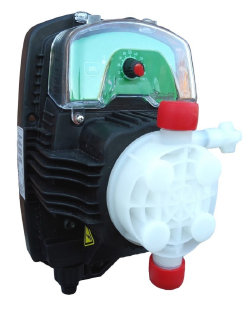

HS Model Pumps
Key Features
• Chemical-resistant housing for harsh environments
with minimal maintenance requirements and long service life
• Exceptional precision throughout dosage
scale minimizing chemical waste and optimising process performance
• Stroke frequency potentiometer
with percentage dial allows manual adjustment to the desired dosing flow rate
•
Integrated frequency range selection keypad for rapid and low chemical consumption and system performance
•
Comprehensive Flow Rate Outputs :- 0.4÷110 litres/Hr - Pressure 0.1÷20 Bar (auto-bleed head available)
•
Patented 100÷240v algorithm reacts to live working conditions to maintain performance
•
Installation Kit : - PVDF Injection Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose

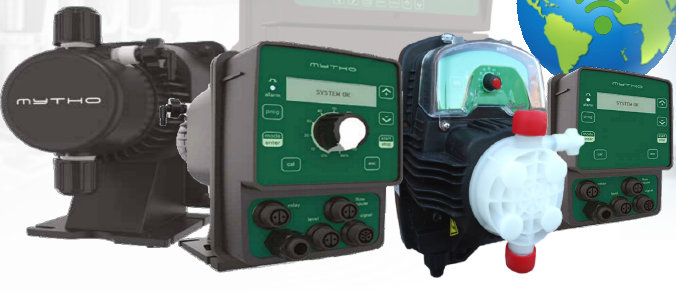

Chemical Dosing Pumps
Precision and control for your chemical processes
Comprehensive range of dosing pumps with
manual adjustment manufactured using premium grade electronic components and mechanical parts offers a perfect blend
of reliability, precision and ease of use ensuring accurate and efficient chemical injection across a wide range of applications
designed to handle a wide variety of fluids, from corrosive chemicals to viscous liquids, available in wall and surface mounted
housing our pumps provide the flexibility you need for effective water treatment, process control, and industrial chemical engineering applications.
Intelligent Metering Algorithm
Common
to all our solenoid driven dosing pumps the patented power algorithm offers a fundamental shift in chemical engineering by compensating
for any environment fluctuations adapting the power delivered to the solenoid adjusting its performance based on the required
flow rate, fluid viscosity and system pressure to ensure the pump operates at it's optimum efficiency.
Intelligent Metering Algorithm
Common
to all our solenoid driven dosing pumps the patented power algorithm offers a fundamental shift in chemical engineering by compensating
for any environment fluctuations adapting the power delivered to the solenoid adjusting its performance based on the required
flow rate, fluid viscosity and system pressure to ensure the pump operates at it's optimum efficiency.
Chemical
Dosing Pumps
Electronic Dosing Systems
Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes

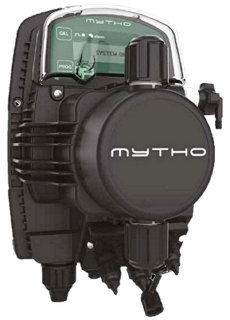

Dosing Pumps
Manual Adjustment - Weekly Timer
Digital range of manually adjustable dosing pumps with integrated
timer for timed dosing applications where precision meets simplicity offering unparalleled control, performance and reliability benefiting
from ease of use functionality and intelligent flow algorithm. The easy to read display provides real-time operational feedback
for both the pumps current manual flow output, timed dosing schedules, pump operational statistics including flow
and level alarm status eliminating guesswork and detecting potential issues, benefits with password protection to safeguard
against unauthorised amendments to programming critical to ensuring chemical concentration levels are maintained eliminating
chemical waste even in the most challenging of environments.
Available with Modbus RTU RS485 port interface for
remote management access via internal webserver with full programming authority via online server.
Pumps With Modbus WiFi Technology
Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
Copyright: - Electronic Dosing Systems 2026

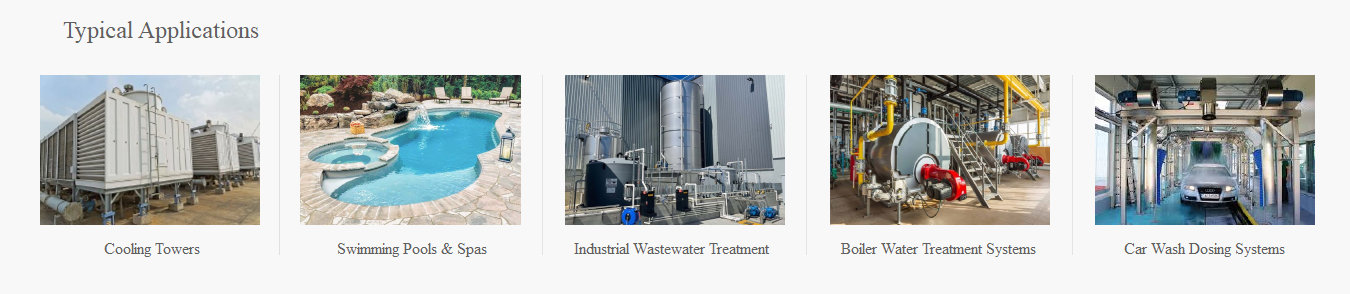

| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle
