Multi Parameter
Controllers
Measurements
- | Free Chlorine | Chlorine Dioxide |
- | Bromine | Hydrogen
Peroxide |
- | pH | Redox | Conductivity |
- | Peracetic | Active Oxygen |

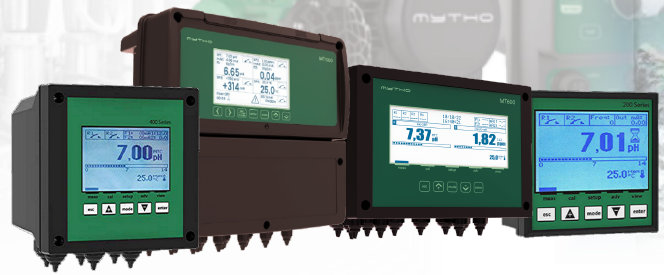

Multifunction Controllers
- Controllers with two-three and four measurement parameters large graphic display intuitive
navigation menu with extensive monitoring and control functions, continuous display readings of all measurement parameters
with status of active outputs for dosing pumps and auxiliary equipment temperature, flow, chemical levels and
error alarms with remote visualization and full programming authority available.
TS400 Controller
DC200 pH-Chlorine Controllers
DC200 RX-EC
Controllers
Redox and Conductivity Controllers
Instruments with a self explanatory intuitive navigation menu
for continuous monitoring & control of redox and conductivity levels, both instruments benefit from simplified and advanced
menu's so user can program parameter schedules according the complexity of the water treatment requirements within the chemical process.
Remote websever access with full programming authority.
Configuration Options | pH-redox | redox (pH)-chlorine
| redox (pH)- ppm |
Characteristics Common To All Controllers
» Auxiliary outputs to drive remote equipment or sensor cleaning »
Time out maximum dosage controlling “Max dosing Time
» Aux programming of days and time operations
» Temperature set point relay when using temperature sensor
» Timer to Start-up and End
unit operations
» Graphic charts and data logger download
» Real-time clock configurable as Timer to drive
controller »
Automatic recognition of measuring parameter
Multi Parameter Controllers
Touch screen display instrument with intuitive navigation menu all
parameters are simultaneously displayed with communication option between measurement schedules, tailoring parameters to
apply it's own unique program within specific measurement boundaries continuously either as a stand system or integrated
into more complex process and control applications.
Remote webserver access with full programming authority.
Controller
Options: - 1- 4 Measurement Parameters
Measurements | Chlorine | pH | Redox | Conductivity | Bromine | Ozone |
Options | Chlorine Dioxide | Hydrogen Peroxide | Peracetic Acid |
Technical Features
» Large graphic intelligent navigation display |
» Measurement
: - parameters pH and Chlorine |
» Programming levels standard or professional |
» Stabilized universal 100÷240v power supply |
» Set-points with proportional (PWM) control |
» Inputs level probe - flow - temperature probe |
» 3 x 4÷20mA output for pumps or data logging |
» Dimensions: - 231 x 125 x 90 Enclosure IP66 |
» Temperature sensor input Type : - P100 |
Technical Features
» Large graphic intelligent navigation display |
» Measurement
: - Redox and Conductivity |
» Programming levels standard or professional |
» Stabilized
universal 100÷240v power supply |
» Set-points with proportional (PWM) control |
» Inputs level probe - flow - temperature probe |
» 3 x 4÷20mA output for pumps or data logging |
» Dimensions: - 231 x 125 x 90 Enclosure IP66 |
» Temperature sensor input Type : - P100 |
Technical Features
» Touch screen intuitive navigation display |
» Four parameters monitored
simultaneously |
» Icon messages: - Errors - Alarms - Output's |
» Real-time clock configurable
for work times |
» Hysteresis - Overdosing - Min/Max Alarm |
» 4 x 20mA output for pumps or
data logging |
» Auxiliary output for chlorine cell cleaning |
» Inputs: 3 x levels-flow switch-temperature |
» Stabilized universal 100÷240v power supply |
» Dimensions: - 264 x 253 x 144 Enclosure IP66 |
» Temperature sensor input Type : - P100 |
MT-1000 Controllers
(multiple parameters)
Technical Features
» Large graphic intelligent navigation display |
» Statistical
data function with stored details |
» Measurements in table and graphic format |
» Modbus
: - RTU-ASCII - communication |
» Multiple set-point activation program modes |
» 3 x 4÷20mA
output for pumps or data logging |
» Remote access with full programming authority |
» Inputs :
- flow switch and temperature sensor |
» Stabilized universal 100÷240v power supply |
» Dimensions 280 x 285 x 140 - Rated IP65 |
» Temperature sensor input Type : - P100 |
Multifunction Instrument
A multi-parameter control instrument capable up to seven simultaneous measurements for professional
water treatment & process applications.
The parameters can be configured for process-specific
measurement tasks in high-end complex industrial processes.
Measured values are taken from various points
of the chemical process under control, the data function permits users to view statistical acquired measurements in
table and graphic format.
QR code provides current device configurations to a smartphone helps technicians identify errors
to improve instrument performance.
Remote access through websever with full programming authority.
Measurement Options;
| pH| Chlorine | Redox | Conductivity | Bromine | Hydrogen Peroxide |
| Peracetic Acid | Dissolved Oxyen | Ozone | Turbidity | Temperatue|
MT-600 Controllers
(multiple parameters)
Technical Features
» Double graphic intelligent navigation display |
» Statistical
data function with stored details |
» Measurements in table and graphic format |
» Programme
for PID algorithm parameters |
» Conductivity measurement in PPM option |
» 2 x 4÷20mA
output programmable by user |
» Probe efficiency & washing function output |
» Modbus : - RTU-ASCII
- communication |
» Stabilized universal 100÷240v power supply |
» Dimensions 220 x 144
x 140 - Rated IP65 |
» Temperature sensor input Type : - P100 |
Multifunction PID Instrument
Double parameter controller with high-contrast graphic display that changes colour depending on
the working conditions of the instrument parameters, particularly useful when visually inspecting for any adverse conditions
within the water treatment process.
The PID function outputs are controlled by the programmed parameters
detected linked to the PID algorithm maximising process management for each application-specific measurement.
Measured
values are in real time and taken from various points of the chemical process and displayed in table and graphic format.
Remote
access through websever with full programming authority.
Measurement Options;
| pH | Chlorine | Redox | Conductivity | Bromine| Hydrogen Peroxide |
| Peracetic Acid | Dissolved Oxyen | Ozone | Turbidity | Temperatue |
Key Benefits
-
Allows programming to be configured between measurement parameters in particular pH priority over
other parameters without the need for additional signal wiring between two or more controllers, additionally provides
an economical solution where two or more controllers are required with the option of remote monitoring visualization together
with full programming authority.
Redox and Conductivity Controllers
Instruments with a self explanatory intuitive navigation menu
for continuous monitoring & control of pH and chlorine levels, both instruments benefit from simplified and advanced
menu's so user can program parameter schedules according the complexity of the water treatment requirements within the chemical process.
Remote websever access with full programming authority.
Configuration Options | pH-redox | redox (pH)-chlorine
| redox (pH)- ppm |
